LED digital panel meters belong to the category of digital panel meters for measuring electrical parameters including voltage and current. Adopting LED display technology, they feature clear, eye-catching readings with excellent visibility even in dim or complex industrial environments. Boasting high measurement accuracy and simple operation, they deliver stable performance. LED screens respond faster and are more durable, perfectly fitting various on-site measurement demands.
| Input | Voltage | AC 0~600V or DC 0~600V |
| Current | AC 1A, 5A | |
| Frequency | 45~65Hz | |
| Accuracy Class | ±0.5% FS | |
| Dimension | 48×48, 72×72, 80×80, 96×48(96B), 96×96, 120×120, 160×80(160B) | |
| Phase | Single-phase, Three-phase | |
| Display mode | LED, LCD | |
| Measurement parameter | U: voltage I: current F: frequency H: power factor P: active power | |
| Q: reactive power R: revolutions per minute E: multifunction power meter | ||
| Meter Power Supply | AC 220V, 50/60Hz (Optional: AC380V, AC/DC85~265V, DC24V, DC36V, DC48V) | |
| Optional Function | RS485, alarm, switch quantity, analog signal transmission, external temperature | |
| Environment | Temperature | operation: -10~50°C，Storage:-25~70°C |
| Humidity | ≤85%RH, free of wet and corrosive gas ≤85%RH | |
| Elevation | ≤3000m | |

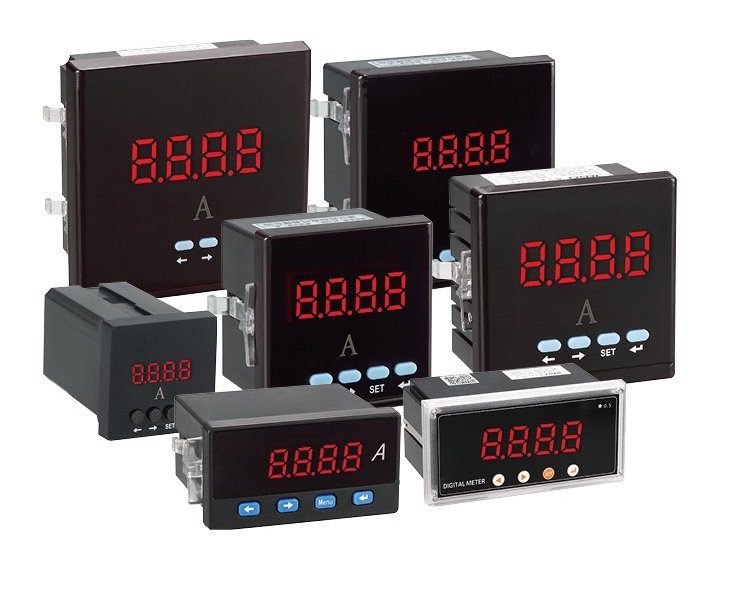

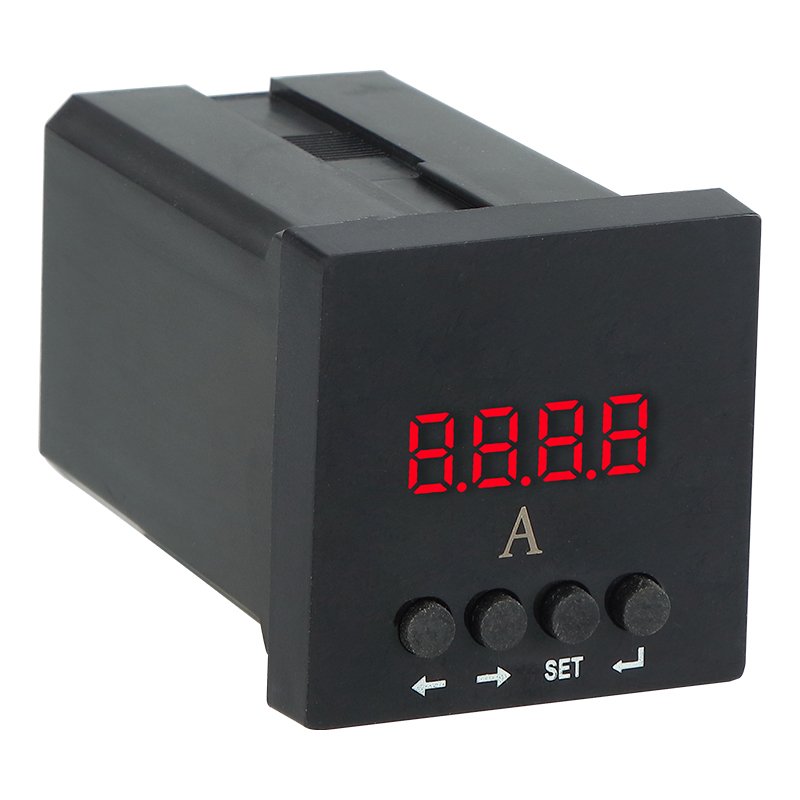

| LED One-phase Ammeter | |||||||
| Accuracy class | Current: 0.5 | ||||||
| Signal input | Current: AC 5A, AC 1A; Frequency: 45~65Hz | ||||||
| Auxiliary power supply | Regular: AC 220V, 50/60Hz ; | ||||||
| Optional: AC380V, AC/DC85~265V, DC24V, DC36V, DC48V | |||||||
| Item | PC48-I | PC72-I | PC80-I | PC96B-I | PC96-I | PC120-I | PC160B-I |

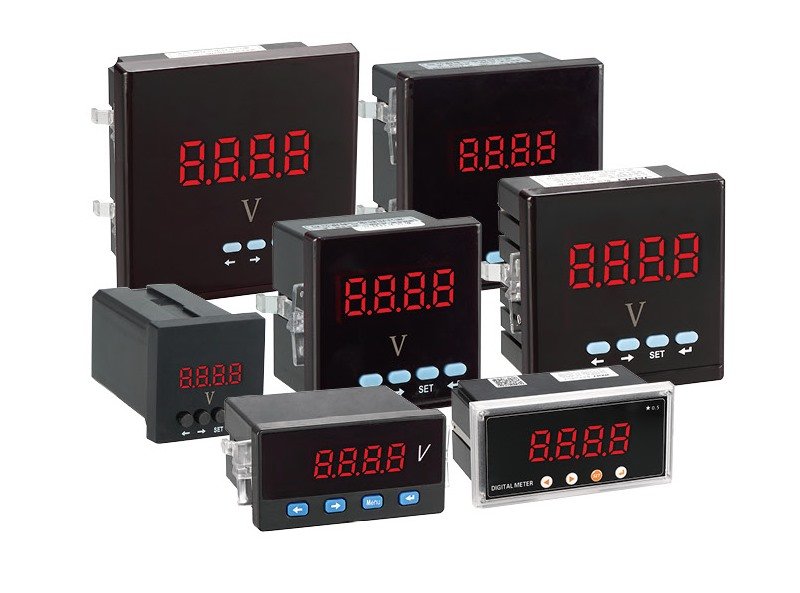

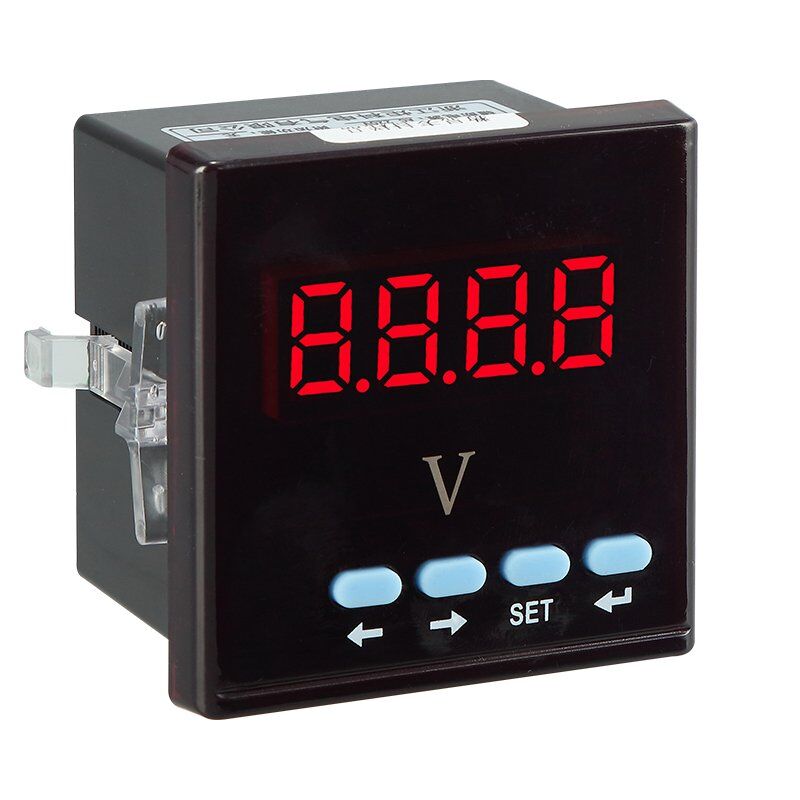

| LED One-phase Voltmeter | |||||||
| Accuracy class | Voltage: 0.5 | ||||||
| Signal input | Voltage: AC 0~600V or DC 0~600V; Frequency: 45~65Hz | ||||||
| Auxiliary power supply | Regular: AC 220V, 50/60Hz ; | ||||||
| Optional: AC380V, AC/DC85~265V, DC24V, DC36V, DC48V | |||||||
| Item | PC48-U | PC72-U | PC80-U | PC96B-U | PC96-U | PC120-U | PC160B-U |

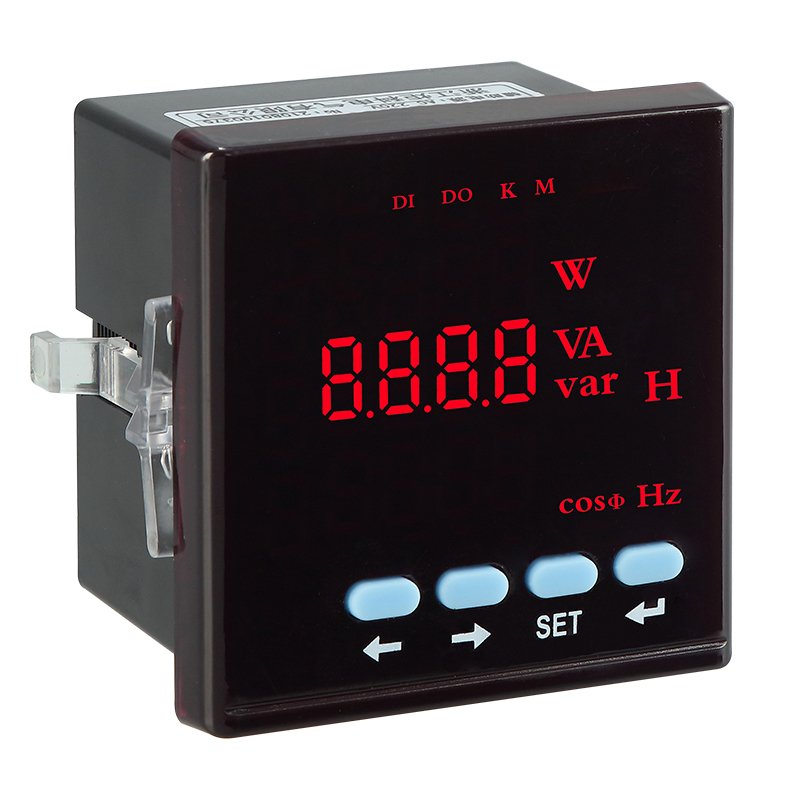

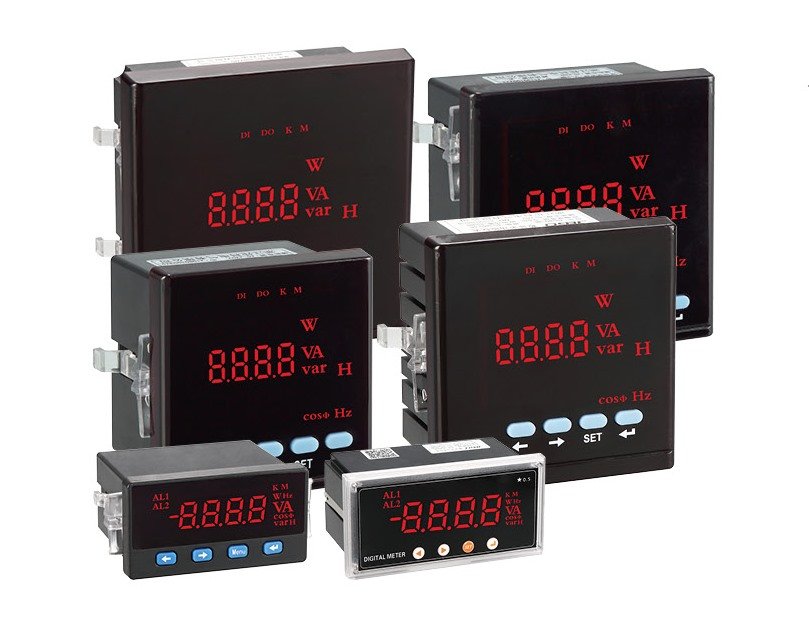

| LED One-phase Multifunctional Meter | |||||||
| Accuracy class | 0.5 | ||||||
| Signal input | Current: AC 5A, AC 1A; Voltage: AC 0~600V; Frequency: 45~65Hz | ||||||
| Auxiliary power supply | Regular: AC 220V, 50/60Hz ; | ||||||
| Optional: AC380V, AC/DC85~265V, DC24V, DC36V, DC48V | |||||||
| Function | Current; Voltage; Frequency; Active Power; Reactive Power; | ||||||
| Apparent Power; Power Factor; Four-quadrant Energy Metering | |||||||
| Item | PC72-E | PC80-E | PC96B-E | PC96-E | PC120-E | PC160B-E | – |
▼We offer solutions for real-time monitoring of electrical parameters, capable of tracking both individual and multiple parameters.
▼ Our design is standardized, with a wide selection of meters available in various sizes and series.
▼ Features a new clip-on installation method that’s quick and doesn’t require tools.
▼ Smart modular design, enhanced with SMT and software debugging, ensures flexibility and reliability.
▼ Supports network connectivity, making remote monitoring easy to implement.
