In today’s fast-paced technological world, current transformers (CTs) are essential for the safe and efficient operation of electrical systems. Whether in power plants, industrial facilities, or residential settings, CTs accurately measure and monitor electrical currents. But what exactly are they, and why are they indispensable?
At their essence, CTs convert high electrical currents into lower, manageable levels for monitoring and protection. By stepping down current, CTs enable precise measurement, ensuring electrical systems operate safely and efficiently. They also provide critical data for diagnostics, analysis, and maintenance of power systems.
For anyone involved in electrical engineering, power distribution, or automation, understanding CTs can optimize system performance, prevent equipment failure, and improve efficiency. This guide explores the principles, types, applications, and benefits of CTs, unlocking their power in various industries.
How Do Current Transformers Work?
CTs operate on the principle of electromagnetic induction. When alternating current (AC) flows through the primary winding, it generates a magnetic field, inducing a proportional current in the secondary winding. The transformation ratio, determined by the number of turns in each winding, dictates how much the current is reduced. For example, a CT with a 100:5 ratio converts 100 A to 5 A.

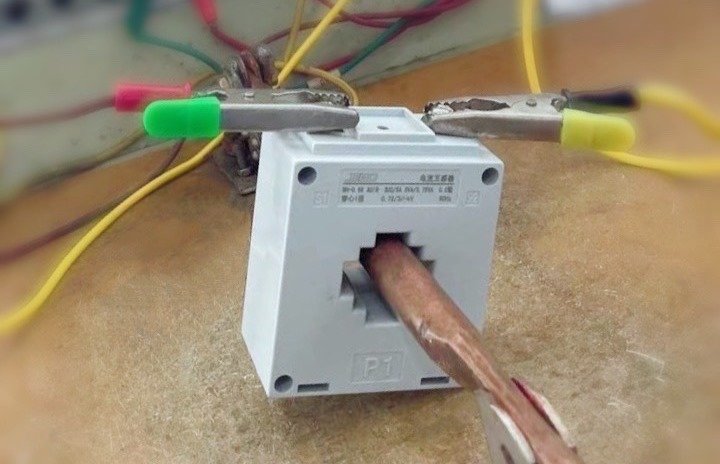

A typical CT features a ferromagnetic core to enhance magnetic coupling and minimize energy loss. The primary winding is often a single loop formed by passing a conductor through the core, while the secondary winding has multiple turns around the core. This design enables accurate monitoring and measurement, while isolating measuring instruments from high voltages.
CTs are connected in series with the load, and the secondary output is fed into devices like ammeters, relays, and protective equipment. This setup allows for safe current measurement without direct exposure to high voltages, ensuring the safety of personnel and equipment.
Why Are Current Transformers Important in Electrical Systems?
CTs are vital for ensuring the accuracy, safety, and efficiency of electrical systems. Their primary functions include:
- Accurate Measurement: CTs provide essential data to monitor performance and detect anomalies, preventing overloads and equipment failure.
- Protection Systems: By supplying real-time current data, CTs enable protective relays to detect and isolate faults like short circuits and overloads, safeguarding infrastructure.
- Energy Management: CTs facilitate load management and metering, allowing utilities to optimize power distribution and reduce costs by monitoring consumption and peak demand.
In short, CTs are used for monitoring, protection, and efficient energy.
Types of Current Transformers
CTs come in various types tailored for specific applications:

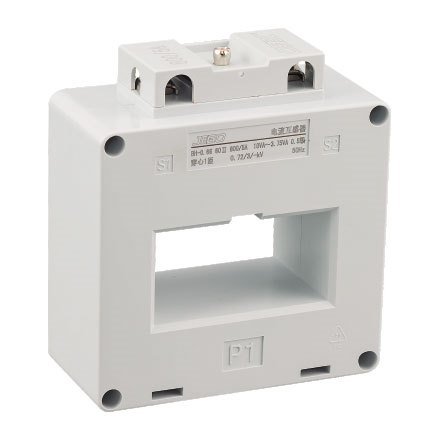

- Window-Type CTs:
- Encircle a conductor passing through the core.
- Ideal for retrofitting without disconnection.
- Used in commercial and industrial environments.

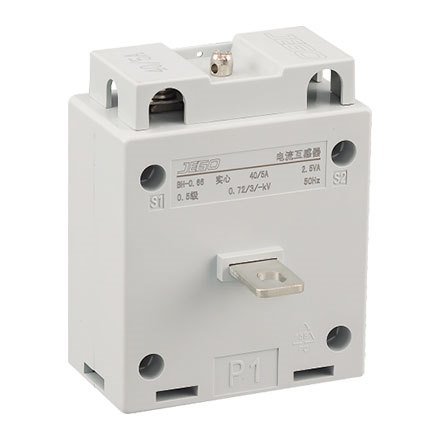

- Bar-Type CTs:
- Feature a solid bar as the primary winding.
- Suitable for high-current measurements in substations.
- Known for accuracy and durability in harsh conditions.

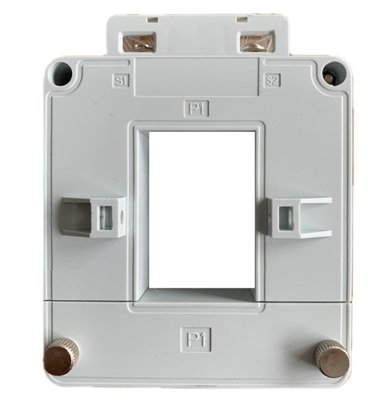

- Split-Core CTs:
- Open and close around a conductor.
- Easy to install for temporary or permanent use.
- Common in residential, industrial, and renewable energy systems.
Key Specifications of Current Transformers
When selecting a CT, consider these critical specifications:
- Transformation Ratio: Matches the primary current to a manageable secondary current.
- Burden Rating: Defines the maximum load (in ohms or VA) connected to the secondary winding without affecting accuracy.
- Accuracy Class: Specifies precision across different current ranges, crucial for metering and protection.
- Insulation Class & Temperature Ratings: Determine operational limits based on environmental conditions.
- Example 1: 200/5A 5VA Class 0.5 -40℃ to +50℃ (Metering CT)
- Example 2: 400/5A 5VA Class 5P10 -40℃ to +50℃ (Protection CT)
Uses of Current Transformers
CTs are used across diverse industries, reflecting their versatility:
- Utilities: Measure power consumption for billing and detect faults in distribution networks.
- Industrial Facilities: Monitor motor loads and automate manufacturing processes.
- Renewable Energy: Track current from solar panels and wind turbines to optimize performance.
- Electric Vehicle Charging: Ensure safe, efficient current flow during charging.
Purposes of Current Transformers
The advantages of CTs extend beyond measurement:
- Safety: Isolate instruments from dangerous voltages.
- Protection: Detect faults and trigger relays, minimizing equipment damage and downtime.
- Efficiency: Facilitate energy management, reducing costs and promoting sustainability.
CTs play a pivotal role in maintaining electrical system stability, protecting assets, and driving efficiency.
Common Challenges and Troubleshooting
While reliable, CTs can face challenges:
- Saturation: Overload in the primary winding distorts measurements. Prevent this by choosing appropriate CT ratings.
- Excessive Burden: Connecting too many devices to the secondary circuit reduces accuracy. Monitor connected devices to stay within limits.
- Environmental Stress: High humidity, extreme temperatures, and contaminants can degrade performance. Select CTs rated for specific conditions and perform regular maintenance.
Selection and Installation Guidelines
To maximize CT performance, follow these best practices:
- Choose the Right Ratio: Ensure the CT matches expected load currents.
- Install Properly: Align window-type CTs around conductors and securely close split-core CTs.
- Calibrate Regularly: Post-installation calibration ensures accurate readings, and periodic checks maintain long-term performance.
Conclusion: Harnessing the Power of CTs
Current transformers are the backbone of modern electrical systems, enhancing measurement, protection, and energy efficiency. Their wide-ranging applications—from utilities to renewable energy—demonstrate their versatility and significance. By understanding their operation and selecting the right CTs, professionals can safeguard systems and optimize performance.
As industries advance, CTs will continue to play a crucial role in power distribution, automation, and sustainable energy initiatives. Embracing their potential today prepares electrical engineers for the evolving demands of tomorrow’s energy landscape.
