Current transformers (CTs) are essential components in electrical power systems, ensuring accurate current measurement and protecting equipment by isolating high-voltage circuits. Their ability to scale down high currents for monitoring makes them invaluable in power generation, distribution, and industrial applications. Understanding the advantages and disadvantages of current transformers is crucial for selecting the right CT for various applications, ensuring safety and efficiency.
What Are the Advantages of Current Transformers?
Current transformers offer several benefits, including high accuracy, wide dynamic range, and enhanced safety through galvanic isolation. They efficiently measure high currents without directly exposing measuring devices to dangerous voltages. This makes them critical in monitoring and protecting electrical grids and systems.
Key Advantages:
- High Accuracy and Precision – CTs provide precise current measurements, crucial for metering and relaying systems. Their accuracy helps reduce errors, making them ideal for industrial and power grid applications.
- Wide Measurement Range – CTs can measure both very small and extremely large currents without compromising performance.
- Galvanic Isolation – By isolating the primary circuit from the secondary, CTs protect sensitive instruments from high-voltage exposure, ensuring operator safety.
- Efficient Handling of Fault Currents – CTs can withstand high fault currents without sustaining damage, making them essential for power protection systems.
- Compact and Cost-effective – Compared to other current measurement devices, CTs are smaller, lighter, and more affordable, providing value without sacrificing functionality.
What Are the Disadvantages of Current Transformers?
Despite their numerous benefits, current transformers have limitations that may affect their performance, especially under high-load conditions. Saturation and secondary power losses are the most common drawbacks.
Key Disadvantages:
- Saturation at High Currents – When exposed to excessively high currents, CTs can saturate, leading to distorted output and inaccurate measurements. This can compromise protection systems during critical fault conditions.
- Burden and Power Loss – CTs consume power in the secondary circuit, known as burden loss. This can reduce overall efficiency, particularly when using multiple CTs in a system.
- Temperature Sensitivity – CT performance can degrade in extreme temperatures, affecting accuracy and reliability.
- Installation Complexity – In certain environments, like outdoor or chemically harsh conditions, CT installation requires additional protection and insulation, increasing costs and complexity.
Applications of Current Transformers
Current transformers are indispensable in power generation, transmission, and distribution. They are widely used in industrial and commercial setups for monitoring, protection, and control.
Key Applications Include:
- Power Grid Monitoring and Metering – Accurate current measurement for billing and efficiency monitoring.
- Overcurrent Protection – Prevents damage to transformers and circuit breakers by detecting and isolating fault currents.
- Relay Protection – Provides critical input to relays for tripping circuits in case of abnormal conditions.
- Industrial Equipment Monitoring – Monitors motors, generators, and electrical equipment to prevent overheating and overload.
Types of Current Transformers and Their Uses
Selecting the right type of current transformer (CT) is crucial for ensuring accurate measurements and efficient protection. Different CT designs cater to varying applications, depending on factors like installation ease, measurement precision, and system voltage. Here are the three main types:
1. Window-Type Current Transformers
Window-type CTs are designed with a hollow core, allowing the primary conductor (busbar or cable) to pass through the center. These CTs do not have a primary winding; instead, the conductor itself acts as the primary.
Uses:
- Common in substation monitoring and power distribution systems.
- Ideal for measuring high currents without physical connection to the conductor.
- Frequently used in industrial metering and energy management systems.
Advantages:
- Simple and cost-effective installation.
- Flexible for different conductor sizes.
- No need to interrupt the primary circuit during installation.

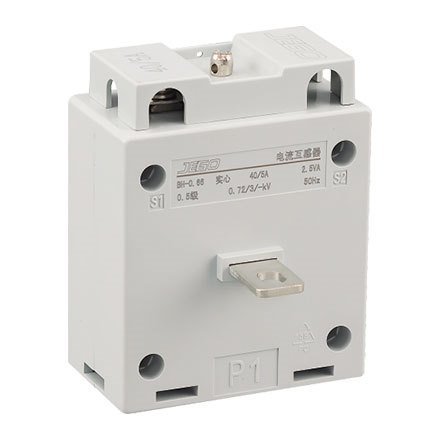

2. Bar-Type Current Transformers
Bar-type CTs have a fixed primary bar (or busbar) integrated into the transformer body. This design allows direct attachment to high-voltage conductors or switchgear.
Uses:
- Common in high-voltage systems and power grid protection.
- Widely used in switchgear panels and transformer yards.
- Preferred for precise current measurement in high-power industrial applications.
Advantages:
- Highly accurate under heavy load conditions.
- Excellent for permanent installations requiring robust performance.
- Durable and can withstand harsh environmental conditions.

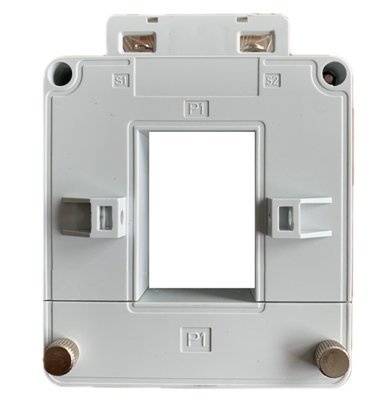

3. Split-Core Current Transformers
Split-core CTs are designed to be opened and clamped around an existing conductor without disconnecting the circuit. They are easy to install and retrofit.
Uses:
- Perfect for retrofit installations in operational systems.
- Used in energy audits and temporary monitoring.
- Common in building management systems (BMS) and HVAC monitoring.
Advantages:
- Non-disruptive installation – No need to de-energize the circuit.
- Ideal for temporary and portable measurement.
- Compact and easy to handle.
By choosing the appropriate CT type—window-type, bar-type, or split-core—users can optimize measurement accuracy, enhance system protection, and ensure easy maintenance across various electrical applications.
Summary
Current transformers play a pivotal role in ensuring safe and accurate current measurement. While they are highly effective, challenges like saturation and power losses should be considered during selection and installation. By understanding the advantages and disadvantages of current transformers, users can make informed decisions to enhance the safety and efficiency of their electrical systems.
