LMZJ1-0.66 low voltage resin CTs are mainly for indoor use, for 0.66KV and below rated voltage and 50/60Hz rated frequency AC circuit, with the function of electric energy and current measurement, and the low voltage switchgears protection. This current transformer is casting resin with molded case.
| Series | low voltage current transformer |
| Item Number | LMZJ1-0.66 |
| Rated Primary Current | 150A to 6000A |
| Rated Secondary Current | 5A |
| Rated Load | 2.5/5/10/20/40VA |
| Accuracy Class | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| Rated voltage | AC 0.66kV |
| Rated Frequency | 50/60Hz |
| Casing Material | resin |
| Installation | busbar or floor mounting |
| Operating Temperature | -40℃ to +50℃ |
| Altitude | ≤ 3000m |
| Power Frequency Voltage Endurance | 3000V/1min |
| Operating humidity | ≤ 80% |
| Function | measurement of current and power; relay protection |
| Model | Ratio | Hole Dimensions | Rated Burden | Accuracy Class |
|---|---|---|---|---|

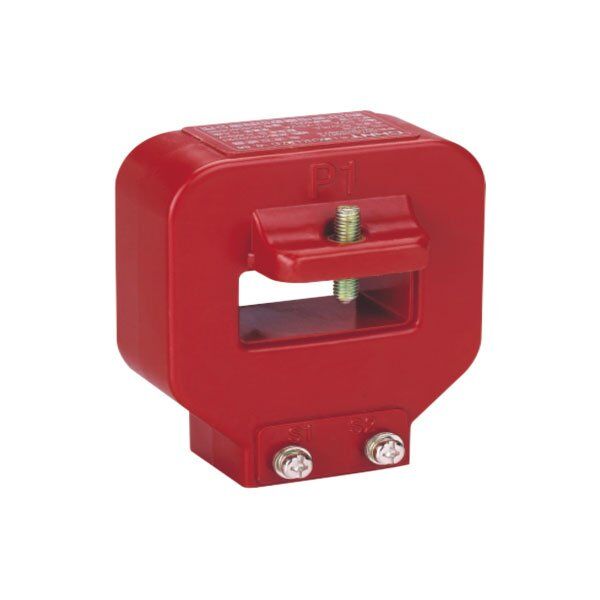

| LMZJ1-0.66 30*20I | 150/5A～300/5A | 30*20mm | 5VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| LMZJ1-0.66 40*20I | 400/5A～600/5A | 40*20mm | 5～10VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| LMZJ1-0.66 50*20I | 400/5A～600/5A | 50*20mm | 5～10VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| LMZJ1-0.66 60*20I | 600/5A～800/5A | 60*20mm | 5～10VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |

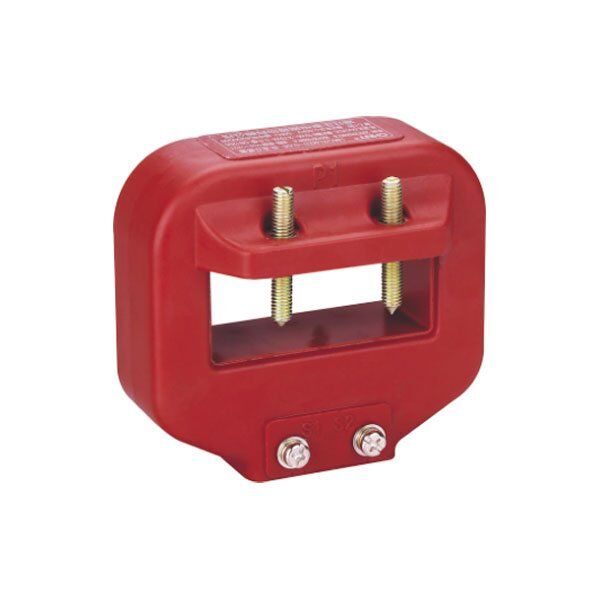

| LMZJ1-0.66 80*30I | 800/5A～1000/5A | 80*30mm | 5～10VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| LMZJ1-0.66 100*30I | 1000/5A～2000/5A | 100*30mm | 10～15VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |

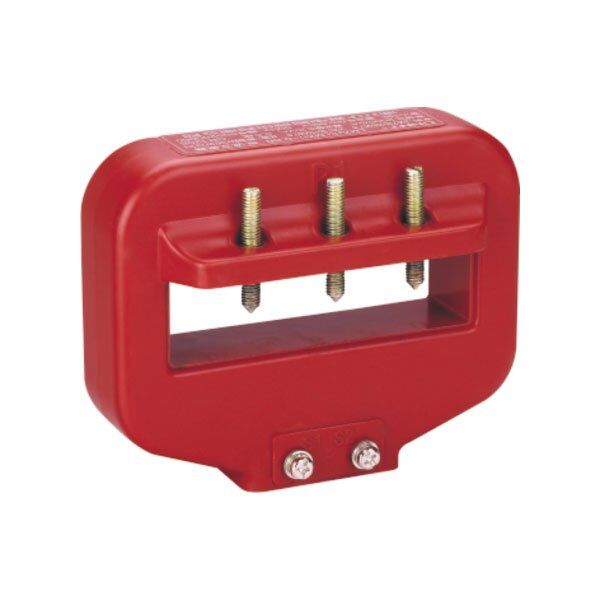

| LMZJ1-0.66 130*30I | 2000/5A～3000/5A | 130*30mm | 15～30VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| LMZJ1-0.66 170*50I | 3000/5A～6000/5A | 170*50mm | 20～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
Window Size: according to the specification and number of busbars.
Rated Current Ratio: 1/3 larger than the measured primary current.
Rated Secondary Current: 5A or 1A. When the installation location of the instrument is far away from the current transformer or the loop load is large, please choose the secondary current of 1A.
Rated Burden: the measuring instrument is connected to terminals S1 and S2, and the total load of the connected circuit should not exceed the transformer’s rated load/burden.
Accuracy Class: for measurement—class 1.0, 0.5, 0.2, 0.5S, 0.2S; for protection—class 5P10, 5P20, 10P10, 10P20.
