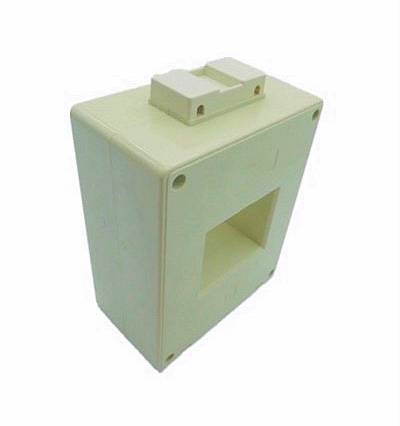

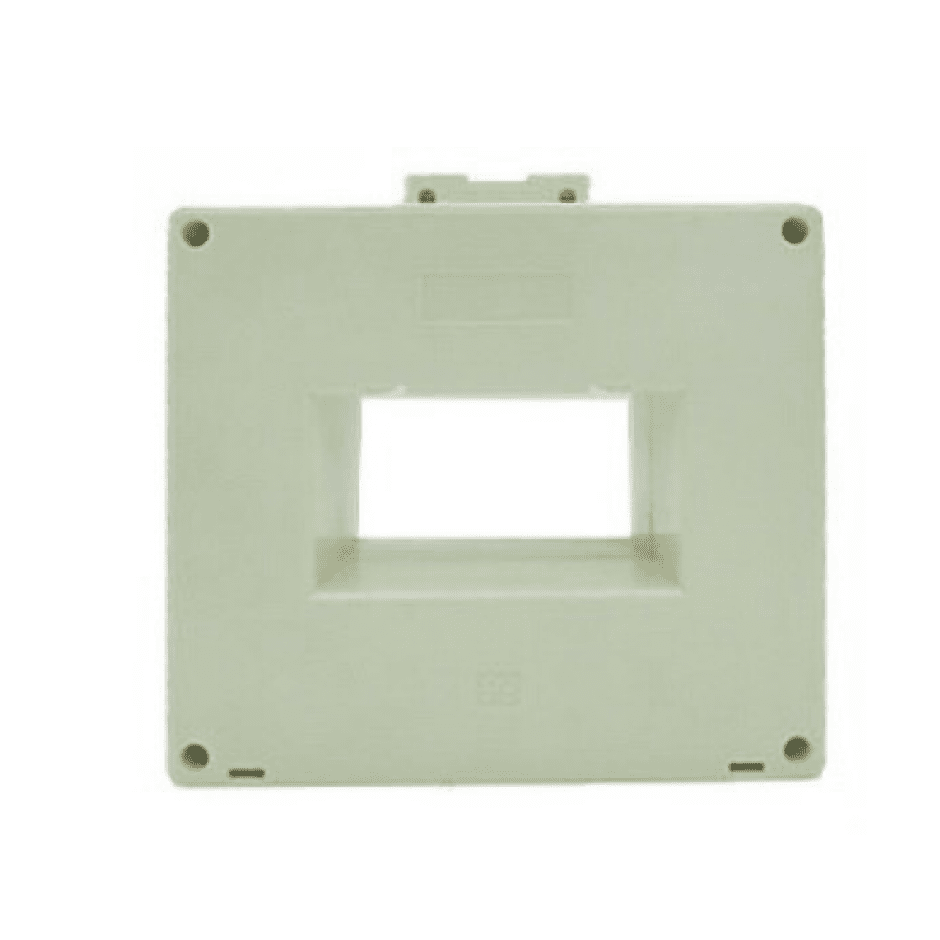

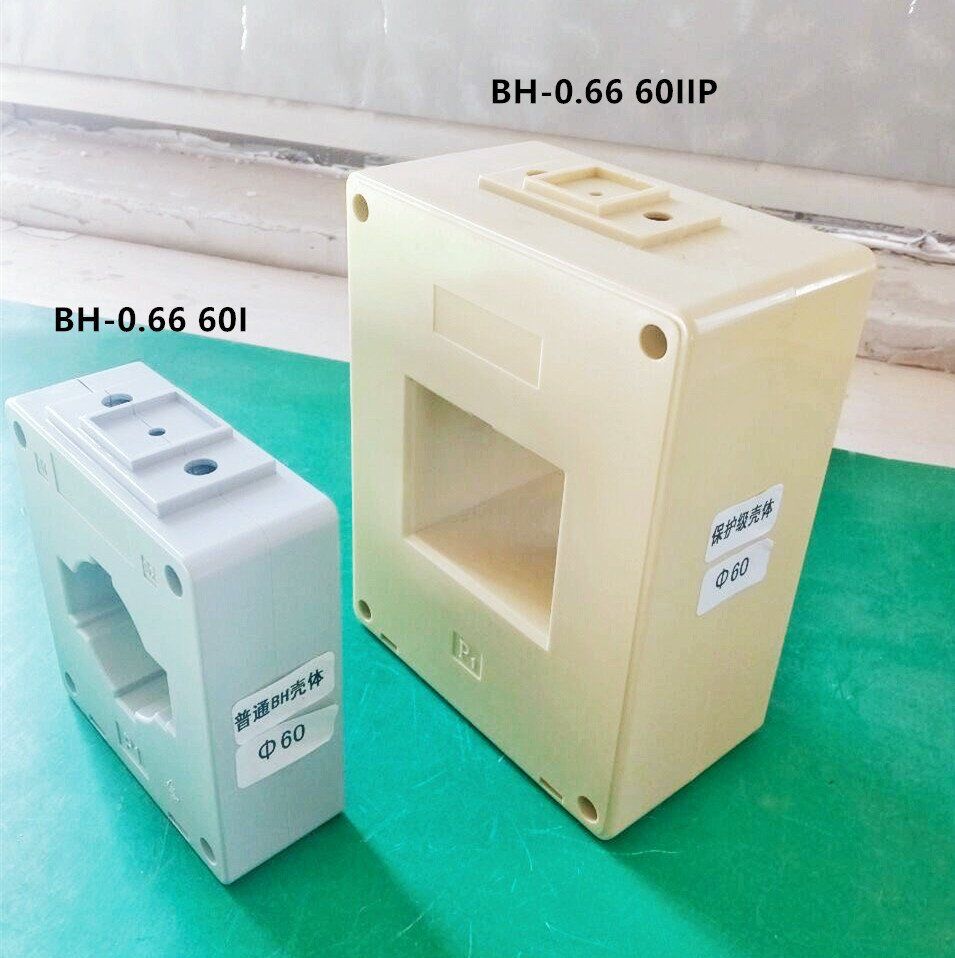

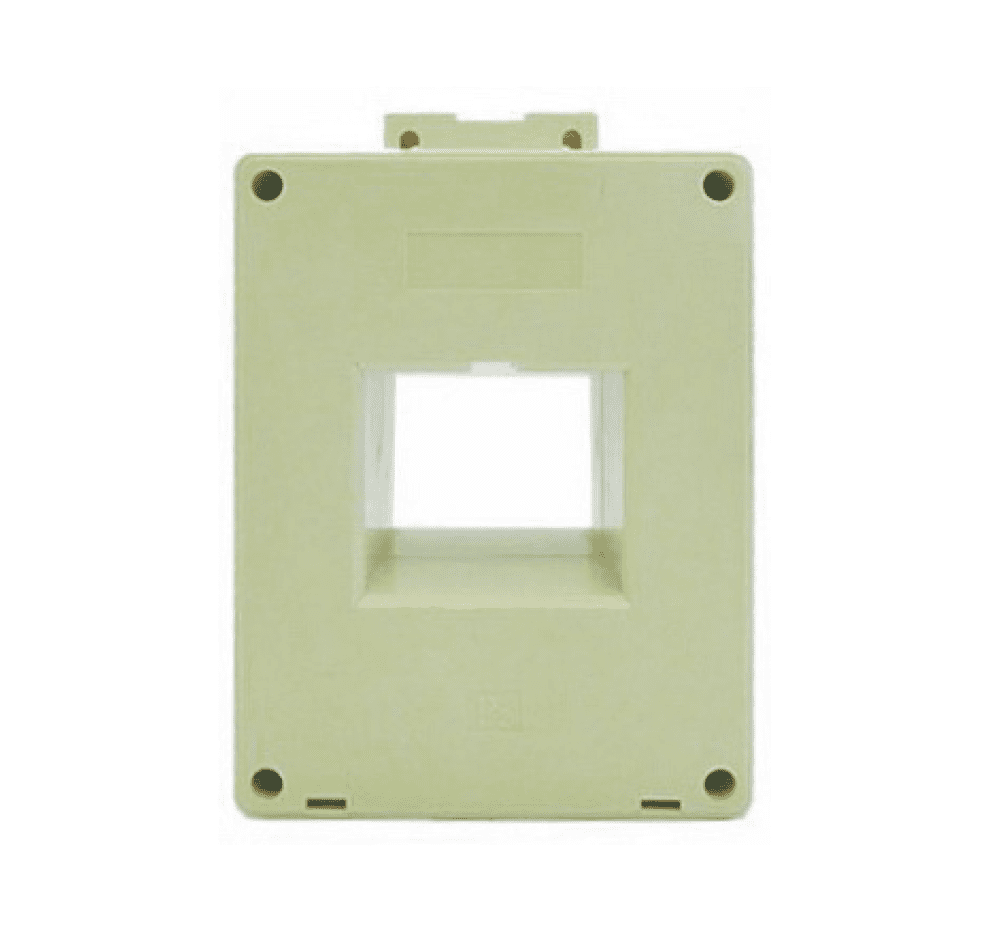

BH-0.66 IIP current transformers are plastic encased which are designed for big burden requirements and also for protection class, such as 5P10, 5P20, 10P10, 10P20. These plastic cases are much bigger than the regular ones. This series can be produced as protective current transformers and as well as instrument transformers. The CTs can be directly installed onto copper busbar up to 720VAC rating.
| Series | protection CT |
| Item Number | BH-0.66 IIP protection |
| Rated Primary Current | 100A to 6300A |
| Rated Secondary Current | 5A, 1A |
| Rated Load | 2.5/5/10/15VA |
| Accuracy Class | 1.0, 0.5, 0.2, 0.5S, 0.2S,5P10,5P20,10P10,10P20 |
| Rated voltage | AC 0.66kV |
| Rated Frequency | 50/60Hz |
| Casing Material | PC |
| Installation | busbar or floor mounting |
| Operating Temperature | -40℃ to +50℃ |
| Altitude | ≤ 3000m |
| Power Frequency Voltage Endurance | 3000V/1min |
| Operating humidity | ≤ 80% |
| Function | measurement of current and power; relay protection |
| Model | Ratio | Hole Dimensions | Rated Burden | Accuracy Class |
|---|---|---|---|---|
| JLK2-0.66 30x20II | 100/5A～400/5A | 30x20mm | 2.5～5VA | 3.0, 1.0 |
| JLK2-0.66 60x40II | 250/5A～1200/5A | 60x40mm | 2.5～10VA | 1.0, 0.5 |
| JLK2-0.66 80x50II | 250/5A～1500/5A | 80x50mm | 5～10VA | 3.0, 1.0, 0.5 |
| JLK2-0.66 100x50II | 500/5A～3200/5A | 100x50mm | 5～20VA | 1.0, 0.5 |
| JLK2-0.66 120x60II | 500/5A～1500/5A | 120x60mm | 5～10VA | 1.0, 0.5 |
| JLK2-0.66 140x60II | 1000/5A～6300/5A | 140x60mm | 10～20VA | 1.0, 0.5 |
| JLK2-0.66 160x80II | 1000/5A～6300/5A | 160x80mm | 10～20VA | 1.0, 0.5 |
| JLK2-0.66 80x50II | 250/1A～1500/1A | 80x50mm | 5～10VA | 3.0, 1.0, 0.5 |
| JLK2-0.66 100x50II | 500/1A～3200/1A | 100x50mm | 5～20VA | 1.0, 0.5 |
| JLK2-0.66 120x60II | 500/1A～1500/1A | 120x60mm | 5～10VA | 1.0, 0.5 |
| JLK2-0.66 140x60II | 1000/1A～6300/1A | 140x60mm | 10～20VA | 1.0, 0.5 |
| JLK2-0.66 160x80II | 1000/1A～6300/1A | 160x80mm | 10～20VA | 1.0, 0.5 |
Window Size: according to the specification and number of busbars.
Rated Current Ratio: 1/3 larger than the measured primary current.
Rated Secondary Current: 5A or 1A. When the installation location of the instrument is far away from the current transformer or the loop load is large, please choose the secondary current of 1A.
Rated Burden: the measuring instrument is connected to terminals S1 and S2, and the total load of the connected circuit should not exceed the transformer’s rated load/burden.
Accuracy Class: for measurement—class 1.0, 0.5, 0.2, 0.5S, 0.2S; for protection—class 5P10, 5P20, 10P10, 10P20.
