The BH-0.66 II current transformer is designed for indoor usage, specifically for AC circuits with a rated voltage of 0.66KV and below, and a rated frequency of 50Hz. It serves the purpose of measuring electric energy and current, as well as providing relay protection. This product is a plastic molded current transformer, widely utilized in various complete cabinet setups. It adheres to the standards of IEC60044-1, IEC61869-2, IEC61869-1, and GB1208-2006 for Current Transformers.
| Series | low voltage current transformer |
| Item Number | BH-0.66 |
| Rated Primary Current | 5A to 6300A |
| Rated Secondary Current | 5A, 1A |
| Rated Load | 2.5/5/10/20/40VA |
| Accuracy Class | 0.2S/ 0.5S/ 0.2/ 0.5/1.0 |
| Rated voltage | AC 0.66kV |
| Rated Frequency | 50/60Hz |
| Insulation Class | E |
| Casing Material | PC |

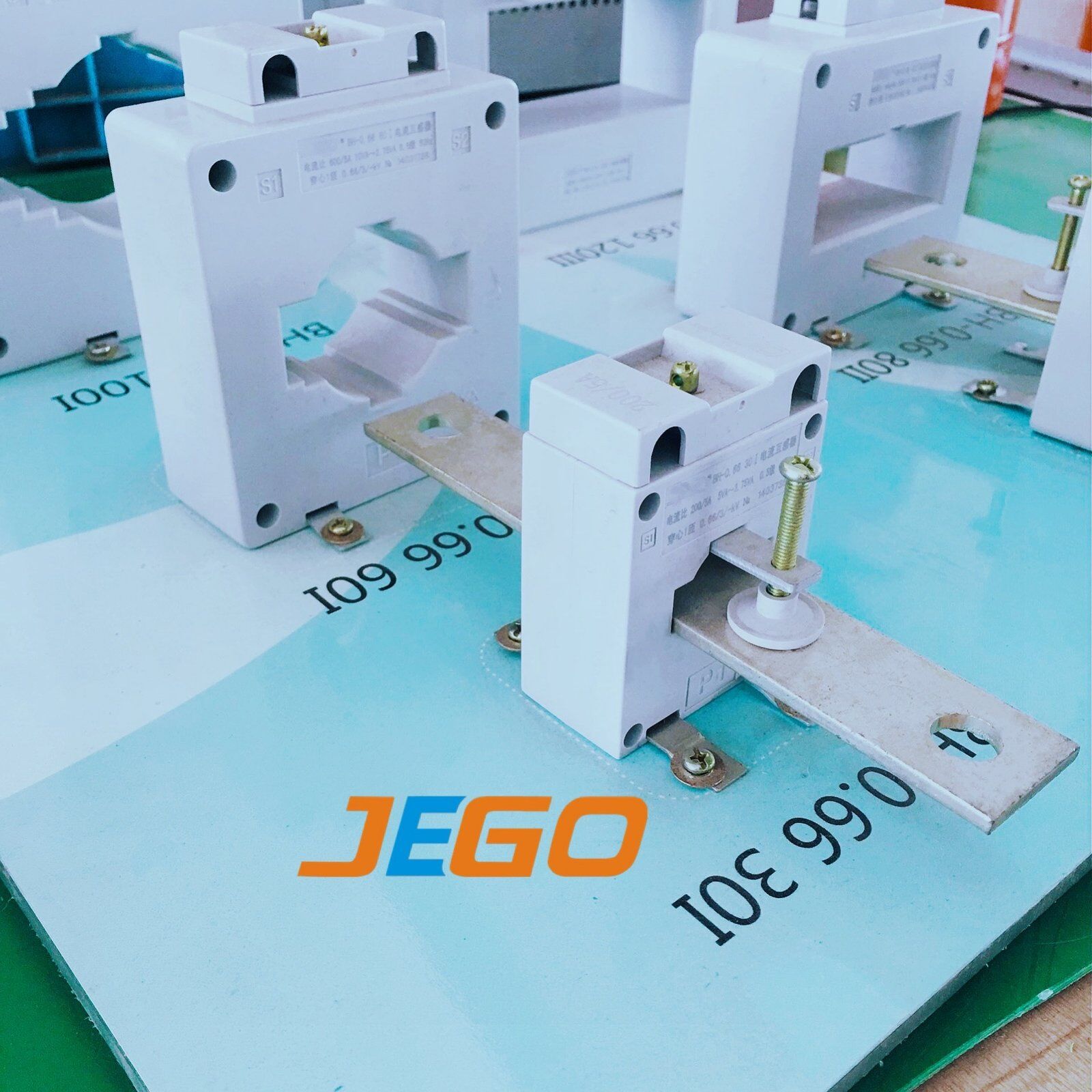

| Installation | busbar or floor mounting |
| Operating Temperature | -40℃ to +50℃ |
| Altitude | ≤ 3000m |
| Power Frequency Voltage Endurance | 3000V/1min |
| Operating humidity | ≤ 80% |
| Function | measurement of current and power; relay protection |

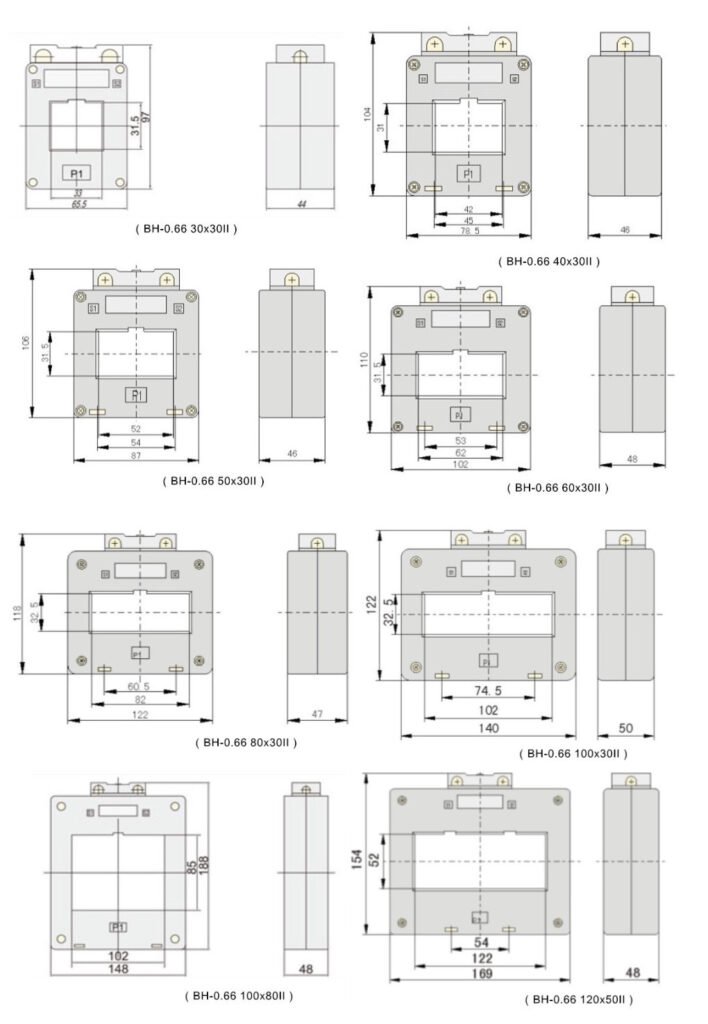

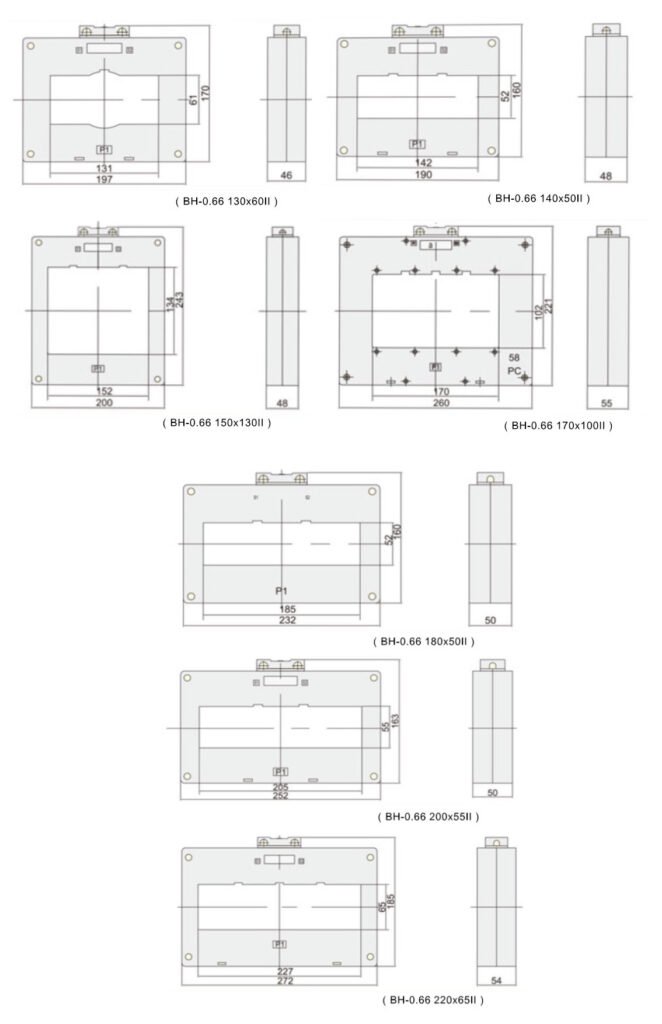

| Model | Ratio | Hole Dimensions | Rated Burden | Accuracy Class |
|---|---|---|---|---|
| BH-0.66 30x30II | 100/5A～500/5A | 30x30mm | 2.5～10VA | 1.0, 0.5 |
| BH-0.66 40x30II | 150/5A～800/5A | 40x30mm | 2.5～10VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 50x30II | 200/5A～1500/5A | 50x30mm | 5～20VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |

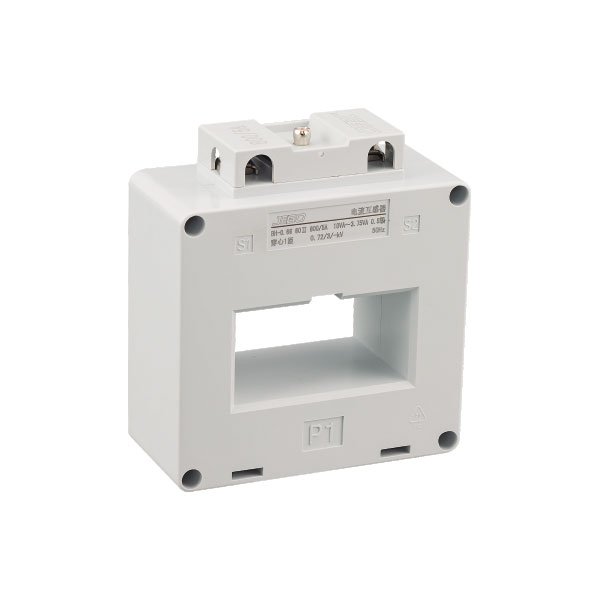

| BH-0.66 60x30II | 250/5A～2000/5A | 60x30mm | 5～20VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |

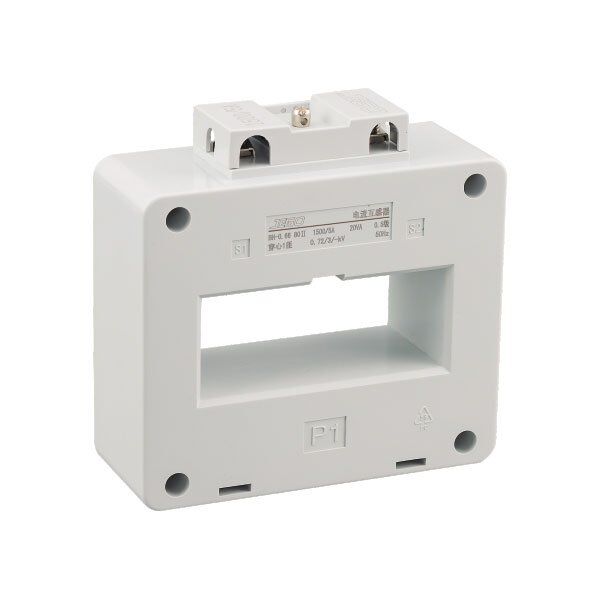

| BH-0.66 80x30II | 400/5A～3000/5A | 80x30mm | 5～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 100x30II | 600/5A～4000/5A | 100x30mm | 5～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 100x80II | 600/5A～4000/5A | 100x80mm | 5～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 120x50II | 1000/5A～5000/5A | 120x50mm | 10～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 130x60II | 1500/5A～6300/5A | 130x60mm | 15～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 140x50II | 1500/5A～6300/5A | 140x50mm | 15～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 150x130II | 1500/5A～6300/5A | 150x130mm | 15～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |

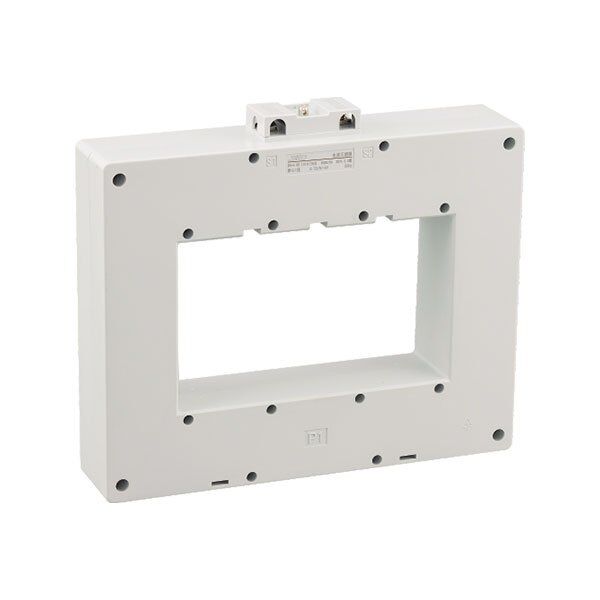

| BH-0.66 170x100II | 3000/5A～6300/5A | 170x100mm | 20～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 180x50II | 3000/5A～6300/5A | 180x50mm | 20～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 200x55II | 4000/5A～6300/5A | 200x55mm | 20～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 220x65II | 4000/5A～6300/5A | 220x65mm | 20～40VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 40x30II | 150/1A～800/1A | 40x30mm | 5～10VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 50x30II | 200/1A～1500/1A | 50x30mm | 5～20VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 60x30II | 300/1A～2000/1A | 60x30mm | 5～20VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 80x30II | 400/1A～2500/1A | 80x30mm | 5～30VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 100x30II | 800/1A～4000/1A | 100x30mm | 5～30VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
| BH-0.66 120x50II | 2000/1A～5000/1A | 120x50mm | 15～30VA | 1.0, 0.5, 0.2, 0.5S, 0.2S |
Window Size: according to the specification and number of busbars.
Rated Current Ratio: 1/3 larger than the measured primary current.
Rated Secondary Current: 5A or 1A. When the installation location of the instrument is far away from the current transformer or the loop load is large, please choose the secondary current of 1A.
Rated Burden: the measuring instrument is connected to terminals S1 and S2, and the total load of the connected circuit should not exceed the transformer’s rated load/burden.
Accuracy Class: for measurement—class 1.0, 0.5, 0.2, 0.5S, 0.2S; for protection—class 5P10, 5P20, 10P10, 10P20.
